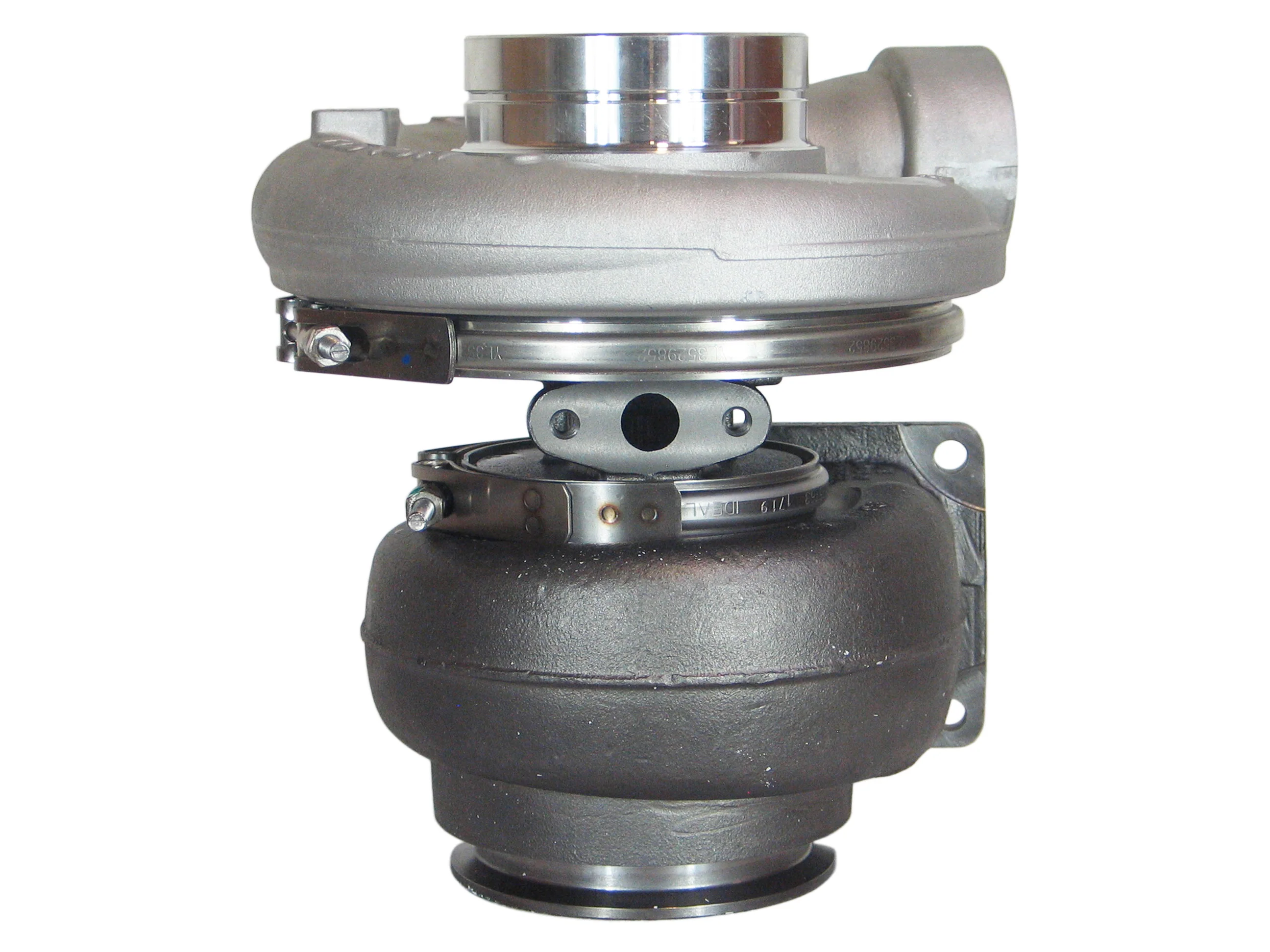

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 3599996
Interchangeable Number: 3599995, 3599996-D, 3599996D, 3599997, 3599998, 4031148, 4031148H
OEM Number: 20516147, 20516242, 85000288
Turbo Model: HX52
Manufacturer: Holset

Year: 2002-09
Engine: D12, D12C, D12D
Engine Manufacturer: Volvo
Displacement: 12.0L
Fuel: Diesel
Power: 465 HP

Angle α (Compressor Housing): 130°
Angle β (Turbine Housing): 171°
Back Plate: 33528096 (1153055300)
Bearing Housing: 3590231/4039258 (1153055451)
CHRA: 4032332 (4032332H, 403233200)(1153052900)
Compressor Wheel: 4035468 (Ind. 67 mm, Exd. 99 mm, 6+6 Blades)(1153052400)
Gasket (Oil Drain): 3519805H
Gasket (Oil Outlet): 210060 (2475013, 311585, 148062)(Paper)
Gasket (Turbine Inlet): 409123-0002 (310694)(Inox Steel)
Gasket Kit: 3545576H
Heat Shield: 3529846/3533038 (1153055340)
Repair Kit (Major): 3580762 (3580762H, 3575181)(1153055750)
Split Ring Seal (Compressor): 3758848H
Turbine Housing: 3598950H
Turbine Wheel: 3592602 (3592602H)(Ind. 84 mm, Exd. 70 mm, 12 Blades)(1153052435)
Turbocharger Kit: 4031148H

NOTE: This turbocharger can upgrade to 4027901, 4027901-D with adapter.

Application:
2002-09 Mack Truck with D12 Engine
2002-09 Volvo Truck with D12C, D12D Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
