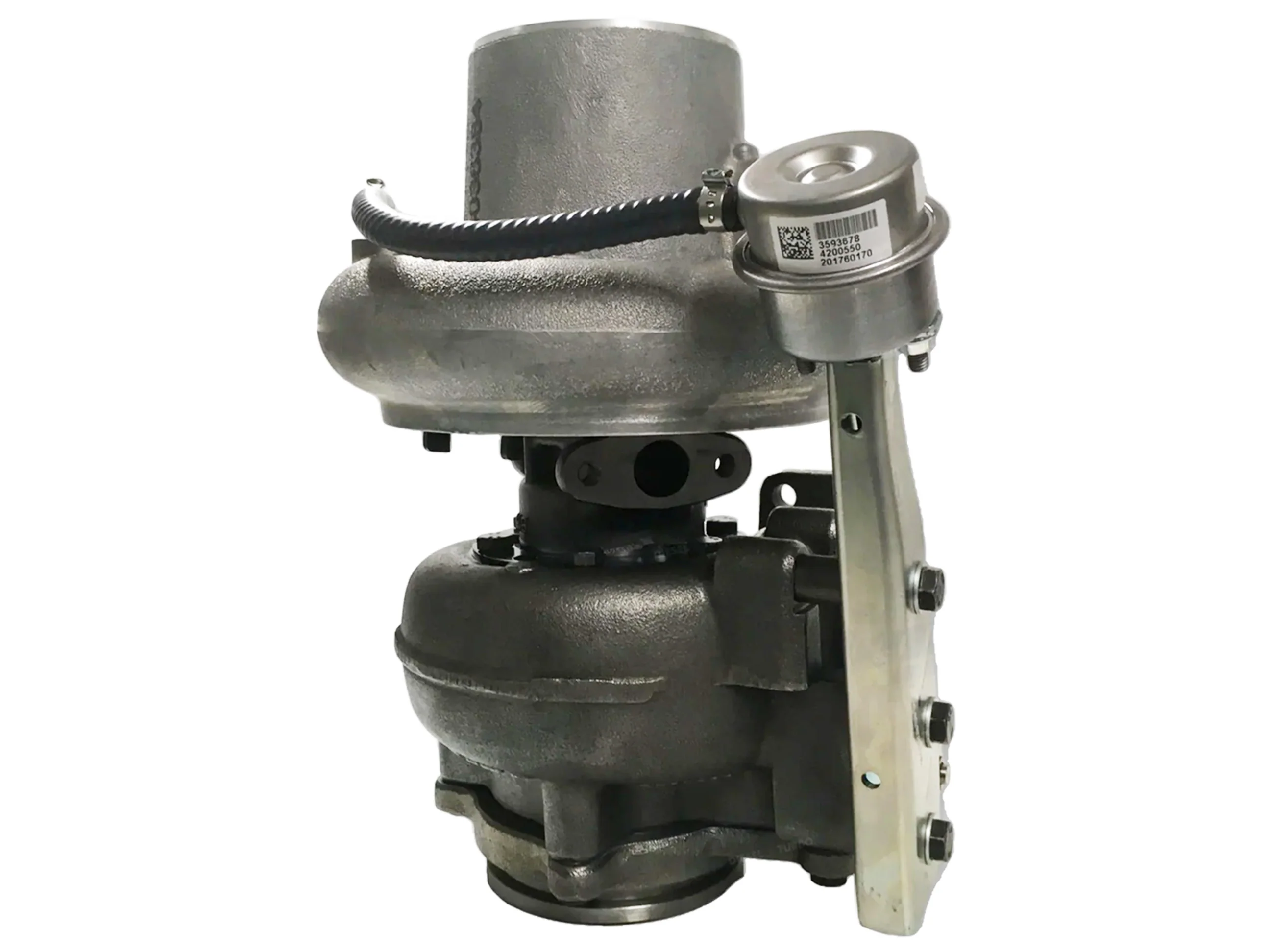

REMANUFACTURED GENUINE HOLSET TURBOCHARGER

This is a REMANUFACTURED GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $200 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 4033649HX
Interchangeable Number: 2842810, 2881887, 288188700, 4033649H, 4033649HX, 4039915, 4046099, 170-032-0285, 1700321135, 2881887RX, 4033649HX, 4039917, 4089930NX, 170-032-1135, 2842810, 4033649, 4039915, 4046099, 4089930RX, 1700320285, 2881887, 4033649H, 4039916, 4089930

OEM Number: 4033649, 4039916, 4039917, 4089930, 4089930NX, 4089930RX
Turbo Model: HX40W
Manufacturer: Holset

Year: 2004-09
Engine: ISC, ISC CM850
Engine Manufacturer: Cummins
Displacement: 8.3L, 8300 ccm
Fuel: Diesel

Angle α (Compressor Housing): 252/275°
Angle β (Turbine Housing): 133°
Actuator Kit (Pneumatic): 4031327H
Actuator: 3593678 (3598471)
Bearing Housing: 4038197 (4038197H, 3537112, 3593878)(Oil Cooled)
Bracket Kit: 4027137H
CHRA: 4031321 (4031321H, 4032234, 4032695, 4043363)
Compressor Cover: 4035405
Compressor Housing: 4036384H
Compressor Wheel: 4035879 (3599016, 4035879, 4043377)(Ind. 59.99 mm, Exd. 86.05 mm, Trim 5.86, 7+7 Blades, Super Back)(1154351400)
Gasket (Oil Drain): 3519805H
Gasket (Oil Inlet): 409039-0000 (409039-0001, 210022-0000, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Oil Outlet): 210060 (2475013, 409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585)(Paper)
Gasket Kit: 3545575 (3545575H, 1900100057)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit (Major): 3575169 (3575169H, 4027448, 4027448H)(1153035750, 1153035751)(Minor)
Repair Kit (Minor): 4031746H
Retaining Ring: 3533163H
Seal Plate: 3596448 (3530923)
Split Ring Seal (Compressor): 3758848H
Turbine Housing (With Wastegate): 3539085
Turbine Housing: 4031328 (3591164H)
Turbine Wheel: 3596226 (3596226H, 4050572)(Ind. 64 mm, Exd. 76 mm, Trim 10.16, 10 Blades)
Turbocharger Kit: 4033649H/4033649HX

Application:
2004-09 Truck (Class 3-8) with Cummins ISC Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
