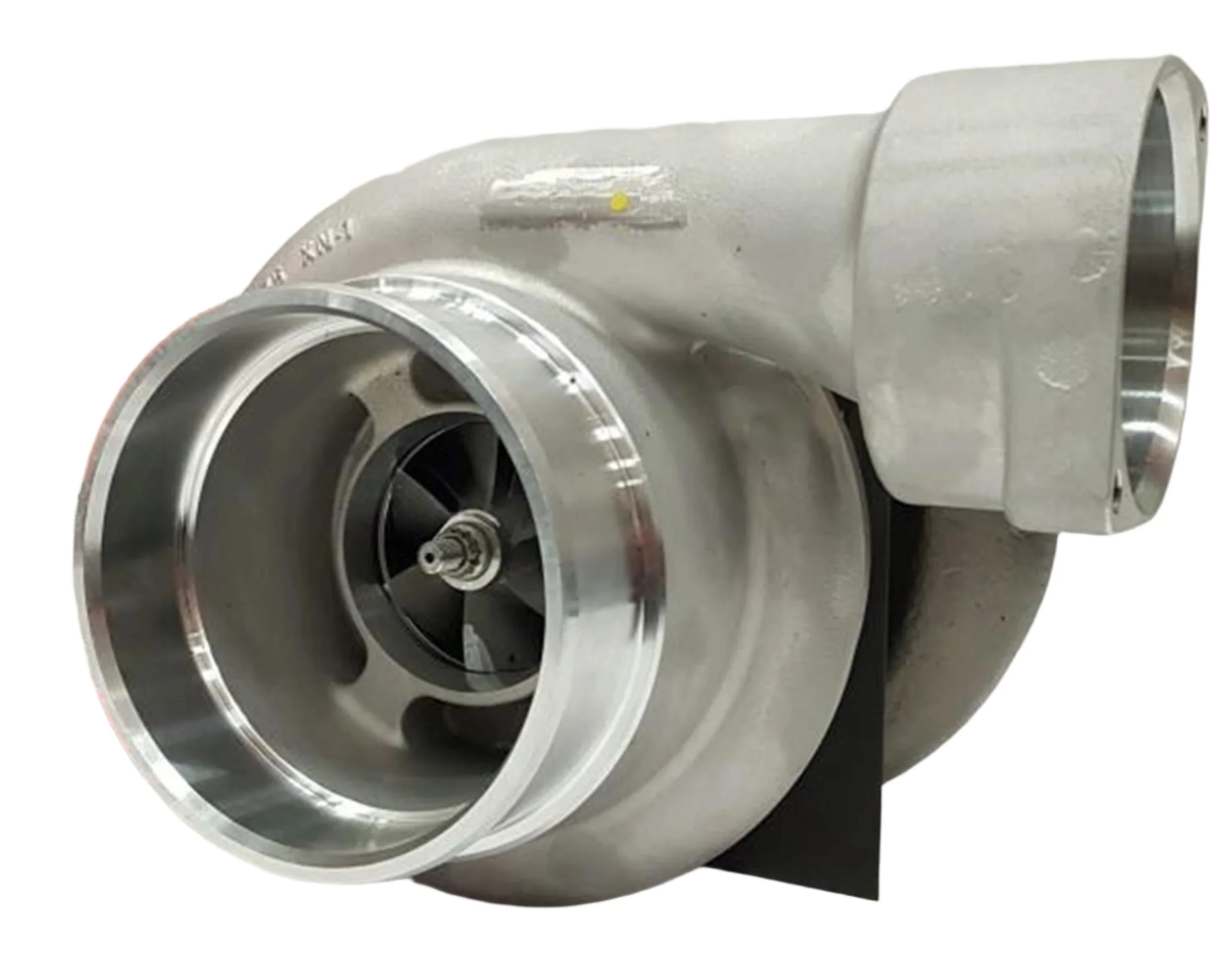

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 466271-5001
Interchangeable Number: 466271-0001, 466271-5001S
OEM Number: 0R-6328, 0R6328, 4P-8730, 4P8730
Serial Number: 48W38860-40144, 48W38860-40539, 48W40540-41131, 48W41132-UP, 48W41541-UP, 48W41904-UP, 99C1-1926, 99C1-UP, 99C1927-UP
Turbo Model: TL7501
Manufacturer: Honeywell-Garrett

Engine: 3408, 3408C, 3408E
Engine Manufacturer: Caterpillar
Displacement: 18.0L, 18000 ccm, V8 Cylinders
Emission Standard: Euro 2
Fuel: Diesel
Prefix: 1JD, 53Y, 5FJ, 7TL, 8BL, 99Z, ABK, ACL, BFD, D9N, D9R, DLA, JJB, MGC, WDM

Back Plate: 447241-0008 (4P8736)
Bearing Housing: 447727-0002 (4P8735)(Water Cooled)
CHRA: 448527-0001 (448527-5001S)(0R6329, 4P8731, 20R2102)
Compressor Cover: 409168-0168 (4P8732)
Compressor Wheel: 445241-0012 (4P8734)(Ind. 46.6 mm, Exd. 102.4 mm, Trim 56, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210161 (Paper)
Gasket (Oil Outlet): 210172 (Paper)
Gasket (Turbine Inlet): 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (Turbine Outlet): 409196-0001 (Inox Steel)
Repair Kit: 468103-0000 (3545824, 468173-0000, 2W0715, 188400-0000)(1101280750)
Turbine Housing A/R: 1.60
Turbine Housing: 441338-0053 (4P8733)
Turbine Wheel: 447386-0001 (4P3823)(Ind. 98.88 mm, Exd. 87.5 mm, Trim 15.24, 11 Blades)(1101675437)

Application:
Caterpillar Construction with 3408 Engine
Caterpillar D8L, D9N, D9R Crawler Tractor with 3408 Engine
Caterpillar Off-Highway with 3408 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
