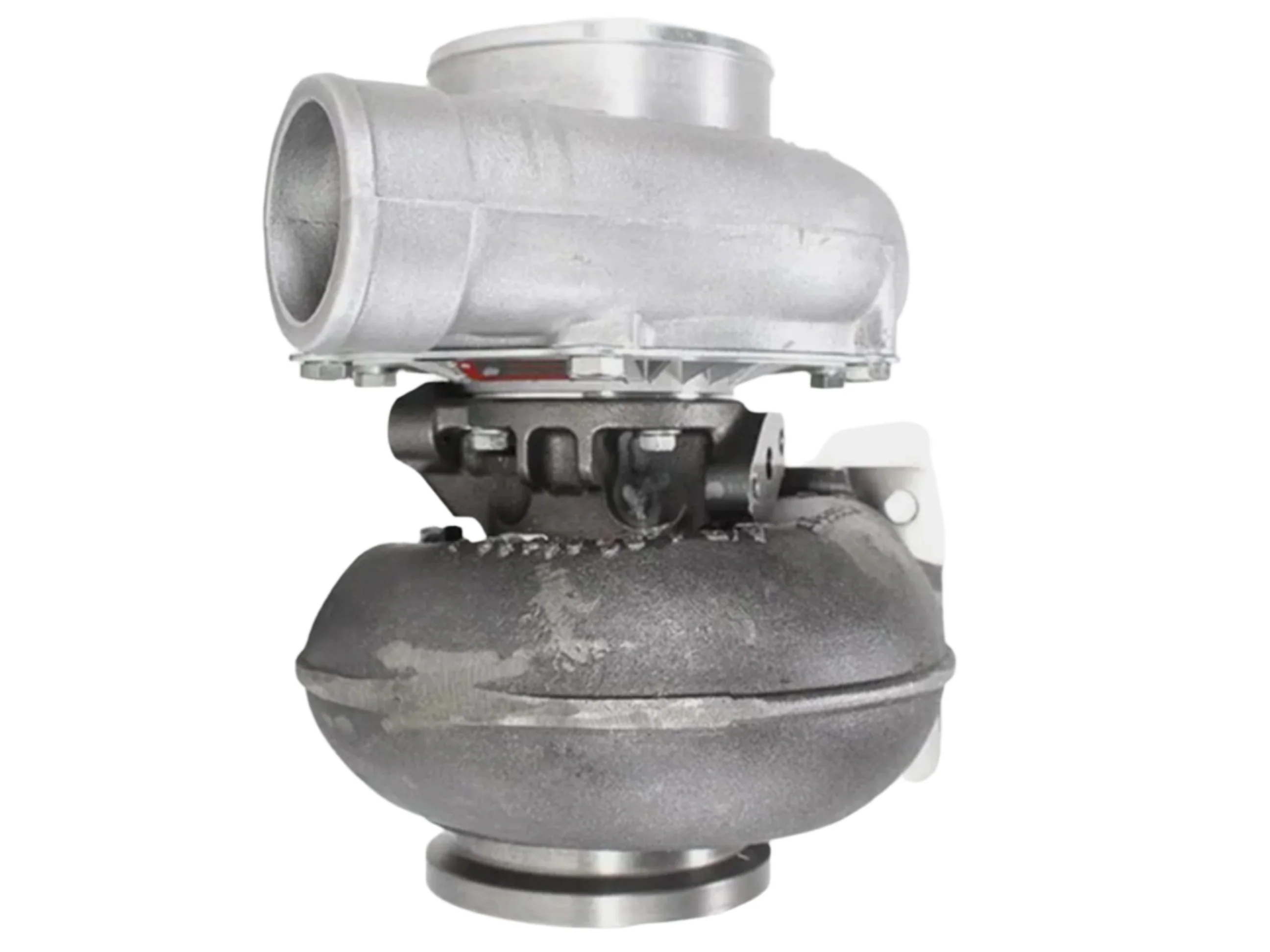

OEM REMANUFACTURED GARRETT TURBOCHARGER

This is a OEM REMANUFACTURED GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

NOTE: There is a core charge of $83 which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase and will be fully refunded once your old re-build able core is received.

Cores must be returned within 60 days of the purchase date. Please allow up to 3 business days for us to process your refund.

Fits the following:

Part Number: 466290-9016
Interchangeable Number: 466290-0016, 466290-5016, 466290-5016S, 466290-0003, 466290-5003, 466290-5003S, 466290-0005, 466290-5005, 466290-5005S, 466290-0009, 466290-5009, 466290-5009S, 466290-0011, 466290-5011, 466290-5011S, 466290-0014, 466290-5014, 466290-5014S, 466290-0015, 466290-5015, 466290-5015S, 466290-0017, 466290-5017, 466290-5017S, 466290-0020, 466290-5020, 466290-5020S, 466290-0021, 466290-5021, 466290-5021S,
OEM Number: E5HN-6K682-BB, E5HN6K682BB, E6HN-6K682-AA, E6HN6K682AA, E6HN-6K682-CA, E6HN6K682CA, E6NN-6K682-CA, E6NN6K682CA, E7HN-6K682-AA, E7HN6K682AA, E7HN-6K682-BA, E7HN6K682BA, E7HN-6K682-CA, E7HN6K682CA, E7HZ-6K682-B, E7HZ6K682B, E7HZ-6K682-E, E7HZ6K682E, E7HZ-6K682-ERM, E7HZ6K682ERM, E8HN-6K682-BA, E8HN6K682BA, E8HZ-6K682-B, E8HZ6K682B, E8HZ-6K682-C, E8HZ6K682C, E8HZ-6K682-CRM, E8HZ6K682CRM, E8HZ-6K682-D, E8HZ6K682D, E9HN-6K682-BA, E9HN6K682BA, E9HZ-6K682-D, E9HZ6K682D, F3HZ-9B613-C, F3HZ9B613C
Turbo Model: T04E14
Manufacturer: Honeywell-Garrett

Year: 1988-
Engine: 474
Engine Manufacturer: Ford
Displacement: 7.8L, 7800 ccm, 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 90°
Angle β (Turbine Housing): 75°
Back Plate: 408045-0039 (408045-0030, 408045-0031, 408045-0038, 408045-0040)(1300016001)
Bearing Housing: 430027-0021 (430027-0035, 407285-0039,407285-0019)(AR63781, 3530636)(Oil Cooled)(1100030451, 1900011104)
CHRA: 408105-0285 (408105-5285S, 408105-0368, 408105-5368S, E7HZ6N684B, E7HZ6N684A, E5HN6N684AB, RE36038)
Compressor Cover: 442203-0134 (E5HN6N661CA, E7HZ6N661B)
Compressor Wheel: 442476-0014 (442293-0015, 409096-0013)(1809694C2)(Ind. 50.75 mm, Exd. 74.99 mm, Trim 4.96, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (Turbine Inlet): 407294-0001 (310694, 312617)(3901356, 3709861)(T30820)(Inox Steel)
Gasket Kit: 215079
Heat Shield, Shroud: 409299-0001 (409299-0000, 407565-0000)(R43804)(7N0012)(311943)
Repair Kit: 468265-0000 (468265-0000UK, 3545831)(1100040760, 5000010041)
Turbine Housing A/R: 1.32
Turbine Housing: 445523-0001
Turbine Wheel: 446905-0002 (155-5236, 407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 74 mm, Exd. 64.61 mm, 11 Blades)(1100-016-090)
Turbo Technology: Free Floating

Application:
1988- Ford Truck with 474 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
